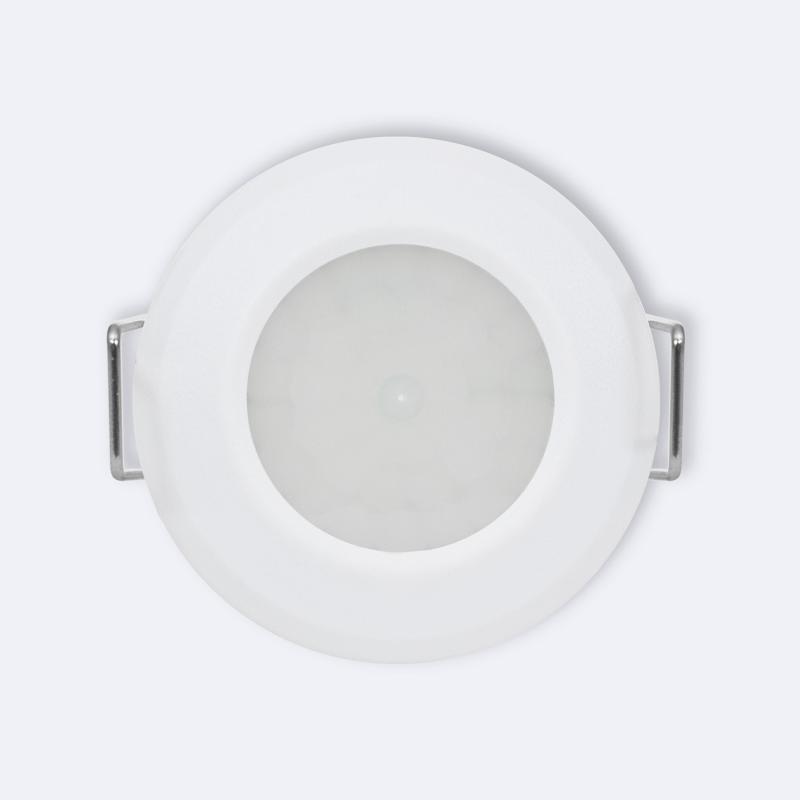

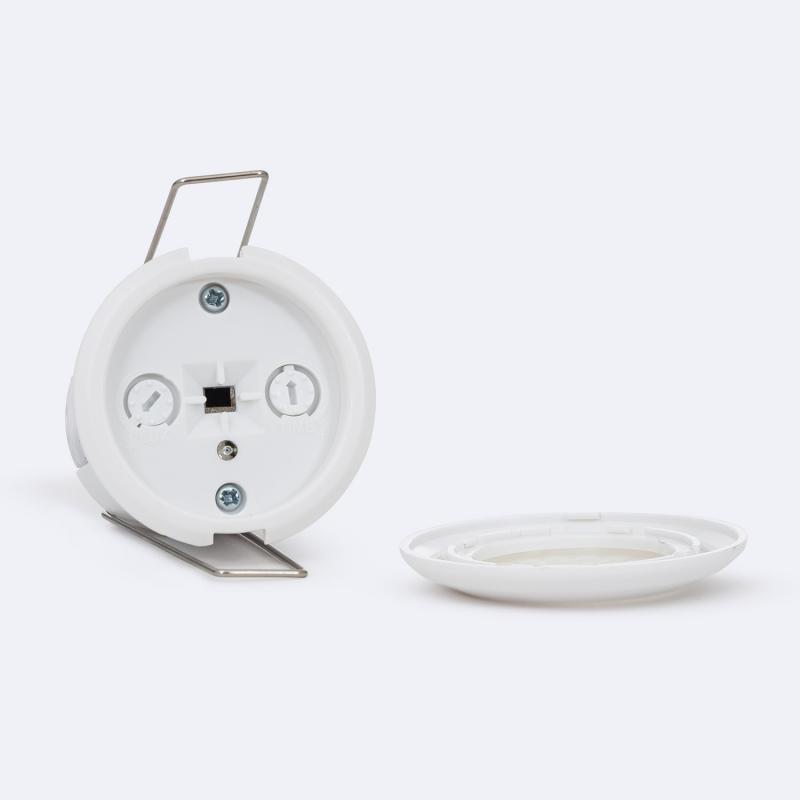

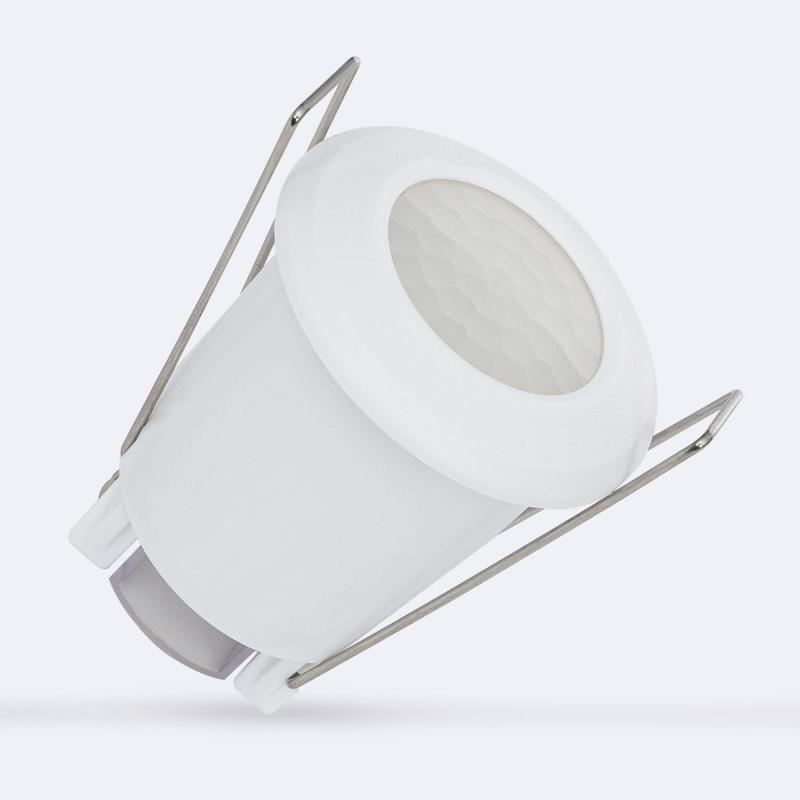

PIR Motion Sensor 360° Downlight
Ref. Lyco: E37381
Colour White
VAT not included £8.33
£10.00
IN STOCK - Delivered in 8 to 14 working days
(1)5 out of 5 stars
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.

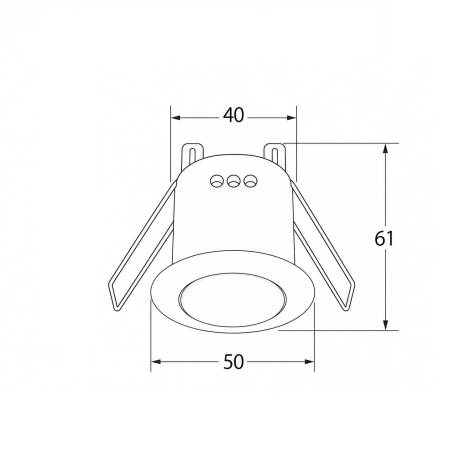

Dimensions
- Diameter50 mm
- Height61 mm
- Cut Out DimensionsØ40 mm
Downloads
PDF Datasheet 100265_206808 EN
IM_100265
Certificates and Stamps
Technical Specifications
Electrical Features
- Frequency50-60 Hz
- Max Wattage400 W
- Nominal Voltage220 V - 240 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Sensitivity10 Lux~2000 Lux
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Mechanical Features
- Detection Range360 °Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
- InstallationRecessed
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- SensorPIR
- Sensor TypePIR Motion
Product Data
- Product FormatPIR Light Controller
- Product typeSensors
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Description
The Recessed 360° Motion Sensor is an electronic device designed for indoor use in lighting applications. With a detection range of 360° and a maximum detection distance and a detection distance of 2 to 6 metres in a temperature below 24°C. This sensor is able to detect the presence of people or objects in a wide detection field.
It has an adjustable delay time from 10 seconds to 7 minutes and operates on a voltage of 220-240V/AC at 50/60Hz. It is capable of supporting a maximum load of 800W for incandescent lamps and 400W LED lamps and its sensitivity range is adjustable from less than 10 to 2000 LUX. In addition, it has an IP20 protection rating, which means it is suitable for indoor use and is designed to be flush mounted.
