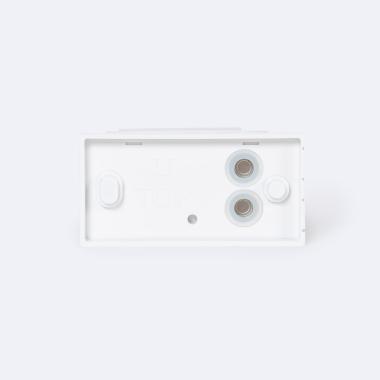

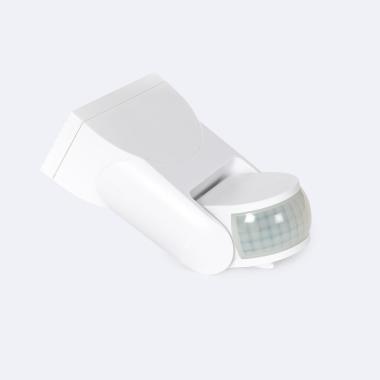

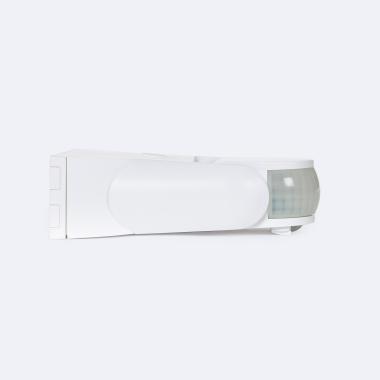

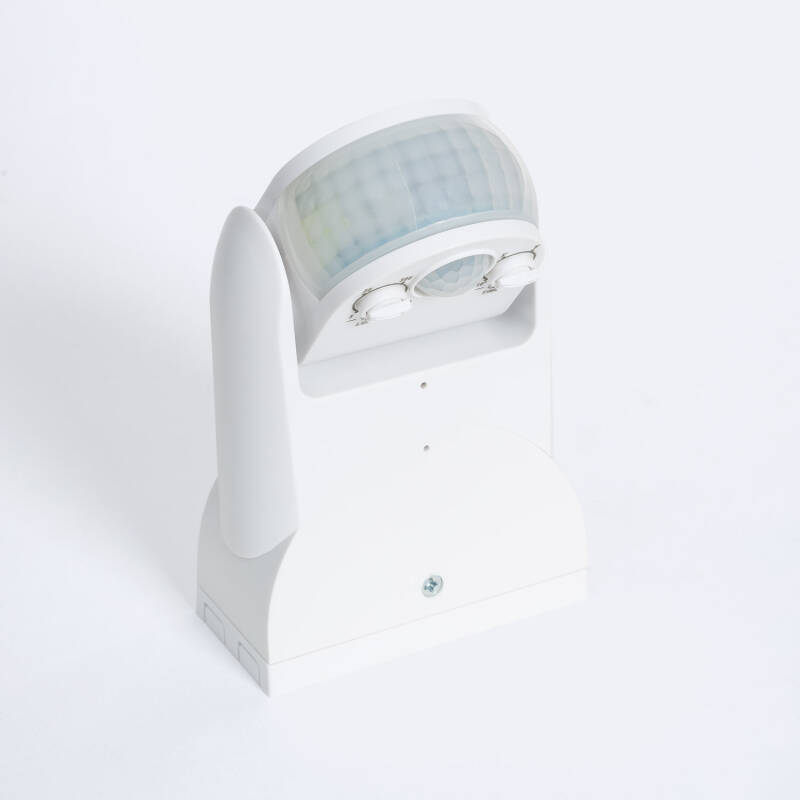

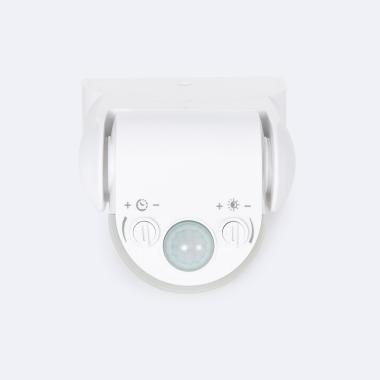

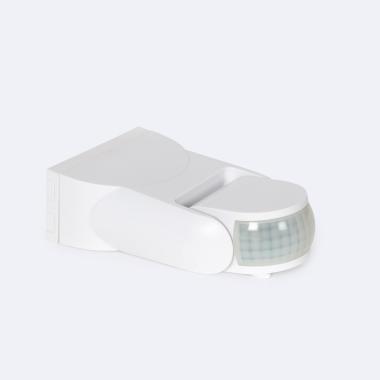

PIR Motion Sensor 360° Adjustable Waterproof IP65

Download technical datasheet

Ref. Lyco: E37379

Colour White

    VAT not included £10.83

    £13.00

    IN STOCK - Delivered in 8 to 14 working days

      30 Day Credit Terms

      • 30 Day Return

        Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.


        For more information view our Returns policy.

      • Want your items fast?

        Check our delivery cut-off times below:


        Mon – Thu: Order before 8:45 PM for 24/48h delivery.


        Friday: Order before 3:00 PM for 24/48h delivery.


        Full conditions here: Delivery methods.

      • 100% secure payments

        payment method image 1

        payment method image 2

        At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation

      • Up to 5 year warranty

        Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


        You will find the exact product warranty in the technical details.

    Dimensions

    • Depth103 mm
    • Height62 mm
    • Width80 mm

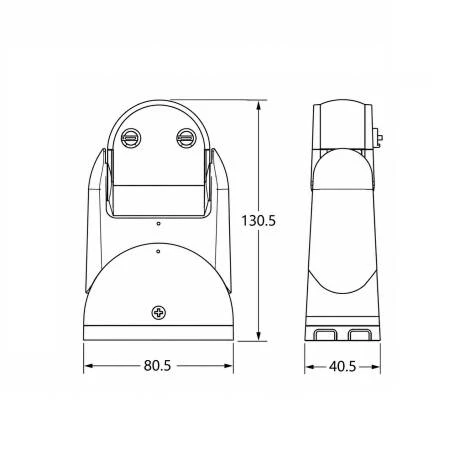

    Scheme image

    Downloads

    • pdf file

      PDF Datasheet 100258_206802 EN

    • pdf file

      IM_100258

    Certificates and Stamps

    CertificateCertificateCertificate

    Technical Specifications

    • Electrical Features

      • Frequency50-60 Hz
      • Max Wattage300 W
      • Sensitivity10 Lux~2000 Lux
      • Voltage level required for the product to function correctly.
        Voltage Range220-240V AC

    • Mechanical Features

      • Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
        Detection Range180 °
      • InstallationSurface
      • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
        IP RatingIP65
      • LocationOutdoor, Indoor
      • SensorPIR
      • Sensor TypePIR Motion

    • Product Data

      • Product FormatPIR Light Controller
      • Product typeSensors

    • Product Information

      • BrandLyco
      • CertificatesCE, RoHS, UKCA
      • Guarantee3 years

    • Materials and Finishes

      • ColourWhite
      • Fitting MaterialPC
      • IncludesScrews
    Outdoor Lights

    Description

    The 360° Adjustable PIR Motion Sensor IP65 is a waterproof and dustproof electronic device designed for use in outdoor areas such as gardens, driveways, patios and building entrances. With a detection range of 180° and 360° and a maximum detection distance of 12 meters (＜24℃）, this sensor is capable of detecting the presence of people or objects over a wide detection range. The time delay is adjustable from 10 seconds ±3 seconds to 15 minutes ±2 minutes.

    The power supply is 220-240V AC 50/60Hz, and the maximum rated load is 1200W (incandescent lamp) or 300W (energy saving lamp/LED lamp). In addition, the sensor has an ambient light adjustment capability of <10 lux to 2000 lux. In summary, the IP65 adjustable 360° PIR motion sensor is highly effective in large areas and can be adjusted to suit different lighting conditions and time delay needs.
