Voltage Range 220-240V AC
Max Wattage 300 W
IP Rating IP65
Dimensions 40.5 mm x 80.5 mm x 130.5 mm
Voltage Range
220-240V AC
Max Wattage
300 W
IP Rating
IP65
Dimensions
40.5 mm x 80.5 mm x 130.5 mm
Width
80.5 mm
Height
40.5 mm
Fitting Material
PC
Brand
Lyco

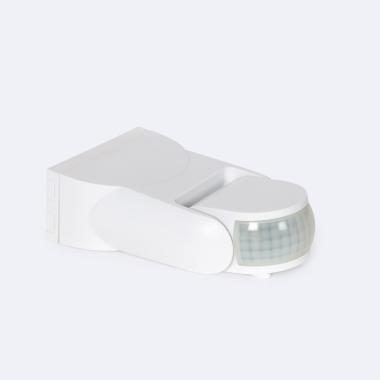

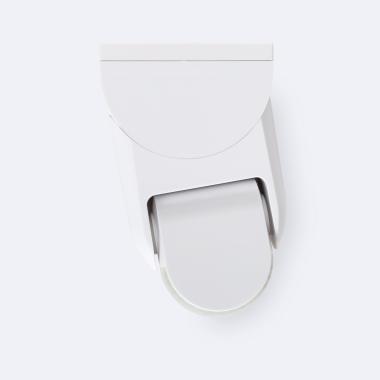

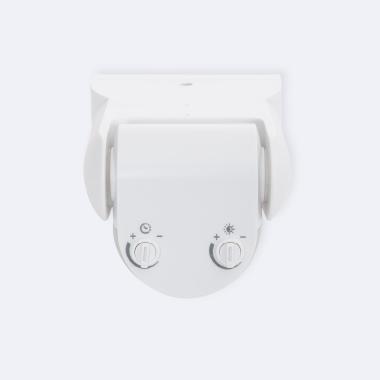

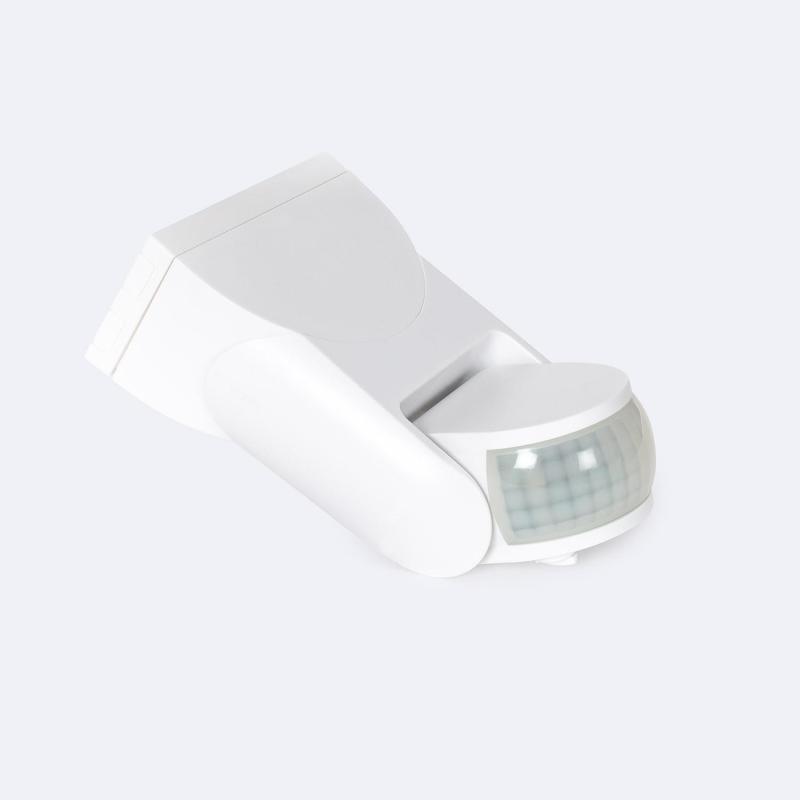

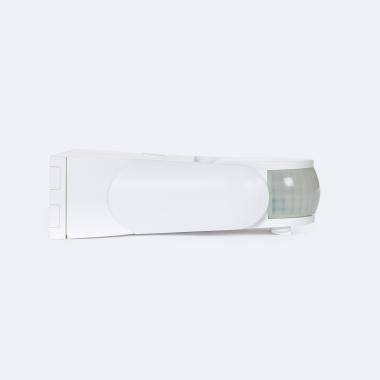

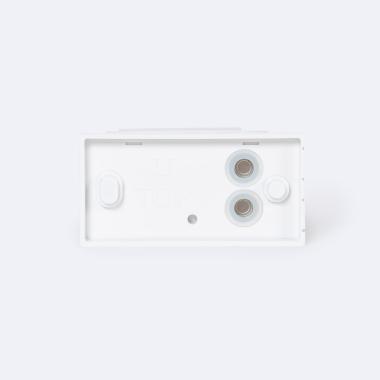

PIR Motion Sensor 180° Adjustable Waterproof IP65
Ref. Lyco: E37378
VAT not included £12.08
£14.50
Colour White
In Stock, Delivered in 8 to 14 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.

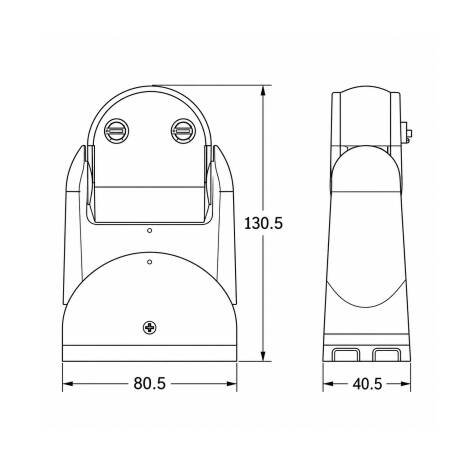

Dimensions
- Depth130.5 mm
- Height40.5 mm
- Width80.5 mm
Downloads
PDF Datasheet 100253_206800 EN
IM_100253
Certificates and Stamps
Technical Specifications
Electrical Features
- Frequency50-60 Hz
- Max Wattage300 W
- Sensitivity10 Lux~2000 Lux
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Mechanical Features
- Detection Range180 °Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
- InstallationSurface
- IP RatingIP65The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor, Indoor
- SensorPIR
- Sensor TypePIR Motion
Product Data
- Product FormatPIR Light Controller
- Product typeSensors
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Description
The 180° Adjustable PIR Motion Sensor IP65 is a waterproof and dustproof electronic device designed for use in outdoor areas such as gardens, driveways, patios and building entrances. With a detection range of 180° and a maximum detection distance of 12 meters (＜24℃）, this sensor is capable of detecting the presence of people or objects over a wide detection range. The time delay is adjustable from 10 seconds ±3 seconds to 7 minutes ±2 minutes.
The power supply is 220-240V/AC 50/60Hz, and the maximum rated load is 1200W (incandescent lamp) or 300W (energy saving lamp/LED lamp). In addition, the sensor has an ambient light adjustment capability of <10 lux to 2000 lux. In summary, the IP65 adjustable 180° PIR motion sensor is highly effective in large areas and can be adjusted to suit different lighting conditions and time delay needs.
