PIR Motion Sensor 180° Sphere
Ref. Lyco: E37373
Colour White
VAT not included £7.49
£8.99
IN STOCK - Delivered in 8 to 14 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Downloads
PDF Datasheet 100217_206772 EN
IM_100217
Certificates and Stamps
Technical Specifications
Electrical Features
- Frequency50-60 Hz
- Max Wattage400 W
- Sensitivity10 Lux~2000 Lux
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Mechanical Features
- Detection Range180 °Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
- InstallationSurface
- IP RatingIP44The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- SensorPIR
- Sensor TypePIR Motion
Product Data
- Product FormatPIR Light Controller
- Product typeSensors
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Description

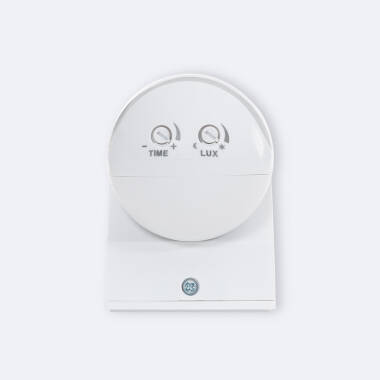

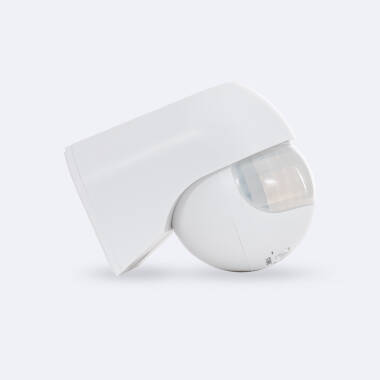

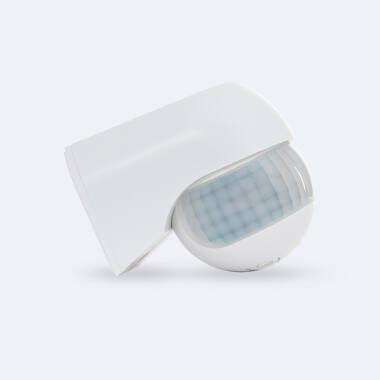

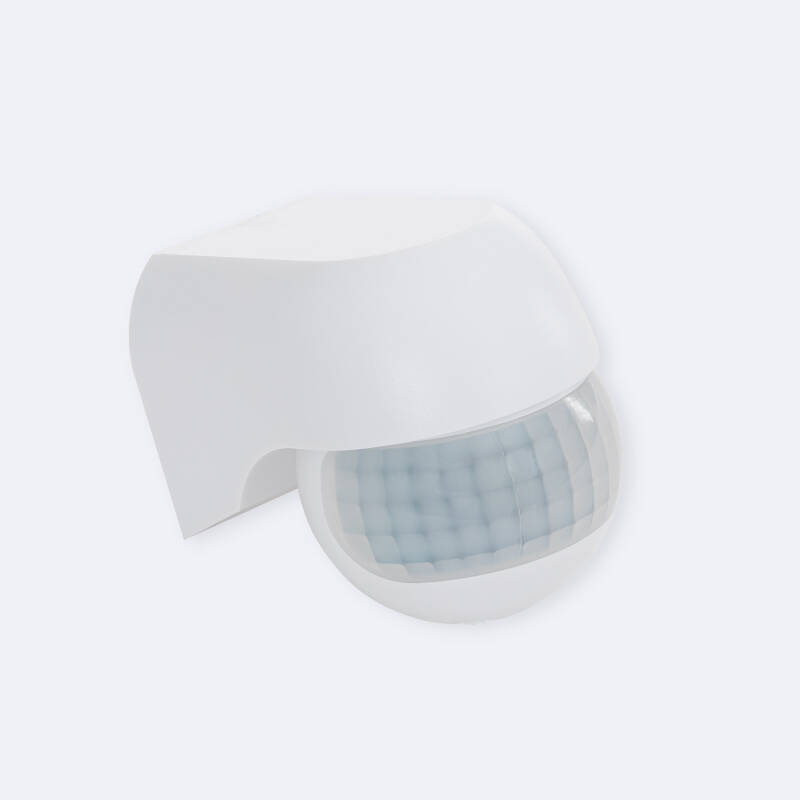

The 180° Sphere PIR Motion Sensor is an efficient security device to control the lighting of a room or area. With a detection range of 180° and a maximum detection distance of 12 meters at a temperature below 24℃ , it is capable of detecting any movement in its coverage area. The delay time can be adjusted between 10 seconds and 7 minutes to meet the user's needs.
This sensor works with a 220-240V AC 50-60Hz power supply and can support a maximum load of 800W for an incandescent lamp and 400W for an LED or energy-saving lamp. Additionally, the ambient light setting can be customized to suit different situations, ranging from 10 to 2000 Lux .
With an IP44 rating, this sensor is resistant to water and dust, making it suitable for use indoors and outdoors. It's an excellent choice for lighting areas like hallways, stairways, garages, patios and more, and can provide additional peace of mind and security at home or at work.
