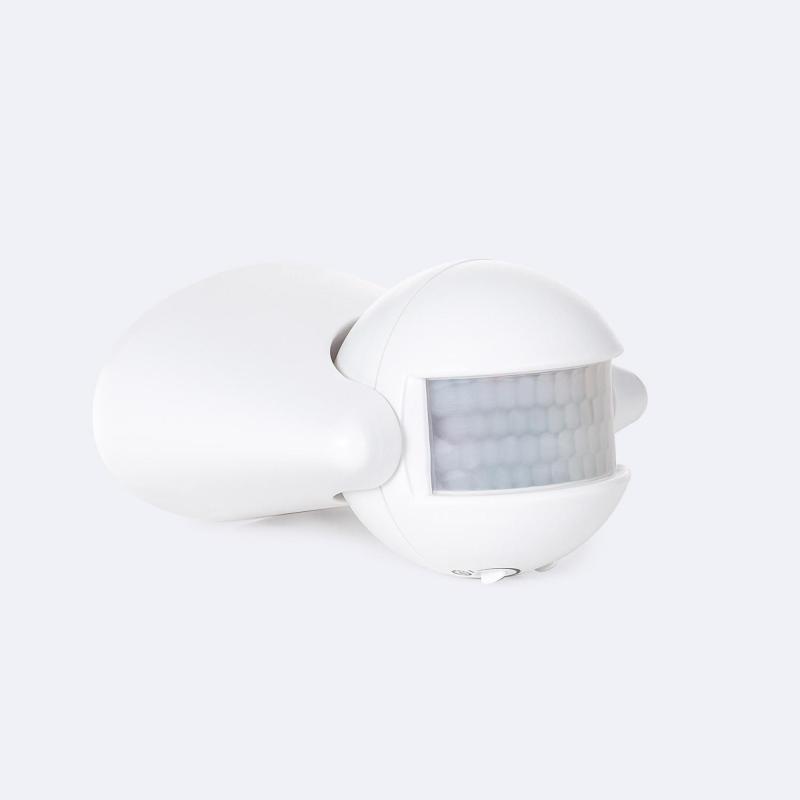

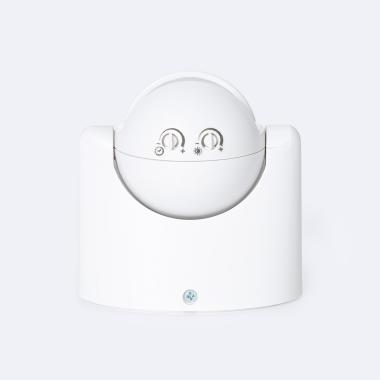

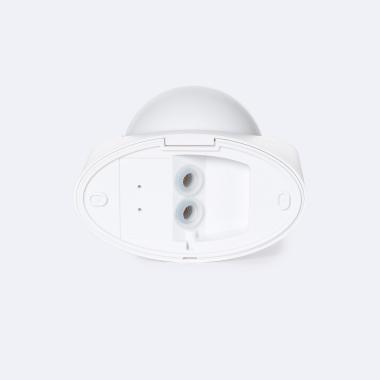

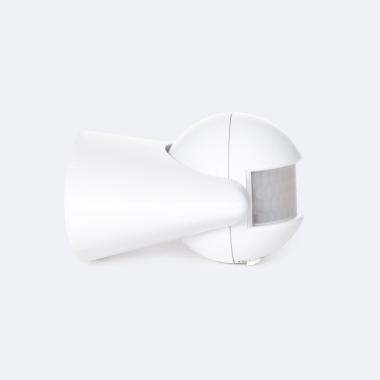

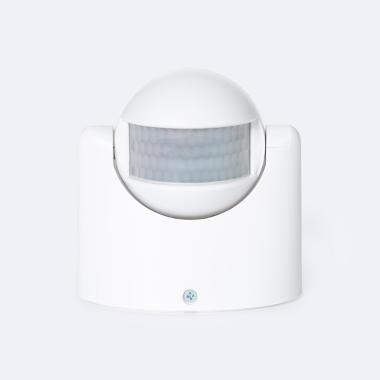

PIR Motion Sensor 180º Design

Download technical datasheet

Ref. Lyco: E37371

Colour White

    VAT not included £6.66

    £7.99

    IN STOCK - Delivered in 8 to 14 working days

      30 Day Credit Terms

      • 30 Day Return

        Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.


        For more information view our Returns policy.

      • Want your items fast?

        Check our delivery cut-off times below:


        Mon – Thu: Order before 8:45 PM for 24/48h delivery.


        Friday: Order before 3:00 PM for 24/48h delivery.


        Full conditions here: Delivery methods.

      • 100% secure payments

        payment method image 1

        payment method image 2

        At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation

      • Up to 5 year warranty

        Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


        You will find the exact product warranty in the technical details.

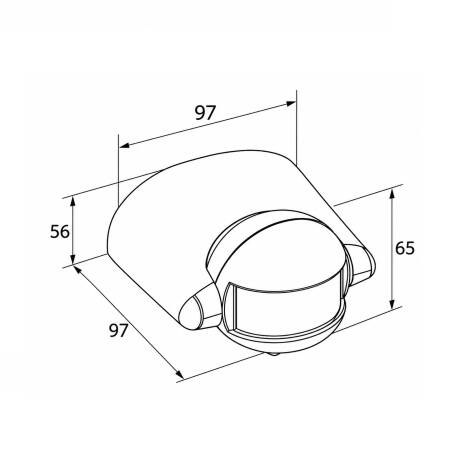

    Dimensions

    • Height65 mm
    • Depth97 mm
    • Width97 mm
    Scheme image

    Downloads

    • pdf file

      PDF Datasheet 100212_206765 EN

    • pdf file

      IM_100212

    Certificates and Stamps

    CertificateCertificateCertificate

    Technical Specifications

    • Electrical Features

      • Frequency50-60 Hz
      • Max Wattage300 W
      • Sensitivity10 Lux~2000 Lux
      • Voltage level required for the product to function correctly.
        Voltage Range220-240V AC

    • Mechanical Features

      • Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
        Detection Range180 °
      • InstallationSurface
      • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
        IP RatingIP44
      • LocationIndoor
      • SensorPIR
      • Sensor TypePIR Motion

    • Product Data

      • Product FormatPIR Light Controller
      • Product typeSensors

    • Product Information

      • BrandLyco
      • CertificatesCE, RoHS, UKCA
      • Guarantee3 years

    • Materials and Finishes

      • ColourWhite
      • Fitting MaterialPC
    Outdoor Lights

    Description

    The 180º Design PIR Motion Sensor is an ideal motion detection solution for a wide variety of lighting applications. With a detection angle of 180 degrees , it can cover a wide and accurate detection area, up to 12 meters away in temperature conditions below 24°C .

    The sensor has an adjustable time delay ranging from 10 seconds to 7 minutes , allowing the sensor run time to be customized to the user's needs. The 180º Design PIR Motion Sensor is powered by a 220-240V/AC 50/60Hz power supply and has a maximum nominal load of 1200W for incandescent lamps and 300W for low consumption or LED lamps.

    The 180º Design PIR Motion Sensor also features an adjustable ambient light controller that can be set between 10 and 2000 LUX, making it suitable for use in a wide variety of environments with varying light levels. With an IP44 protection rating, the sensor is also resistant to moisture and dust ingress.
