Voltage Range 220-240V AC
Max Wattage 300 W
Diameter 80 mm
IP Rating IP54
Voltage Range
220-240V AC
Max Wattage
300 W
Diameter
80 mm
IP Rating
IP54

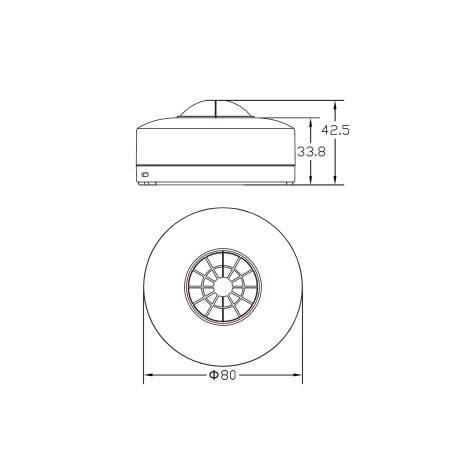

Dimensions
40 mm x Ø80 mm
Height
40 mm
Fitting Material
PC
Brand
Lyco

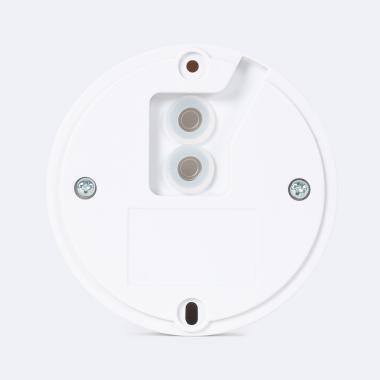

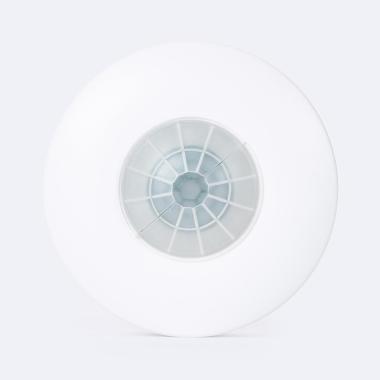

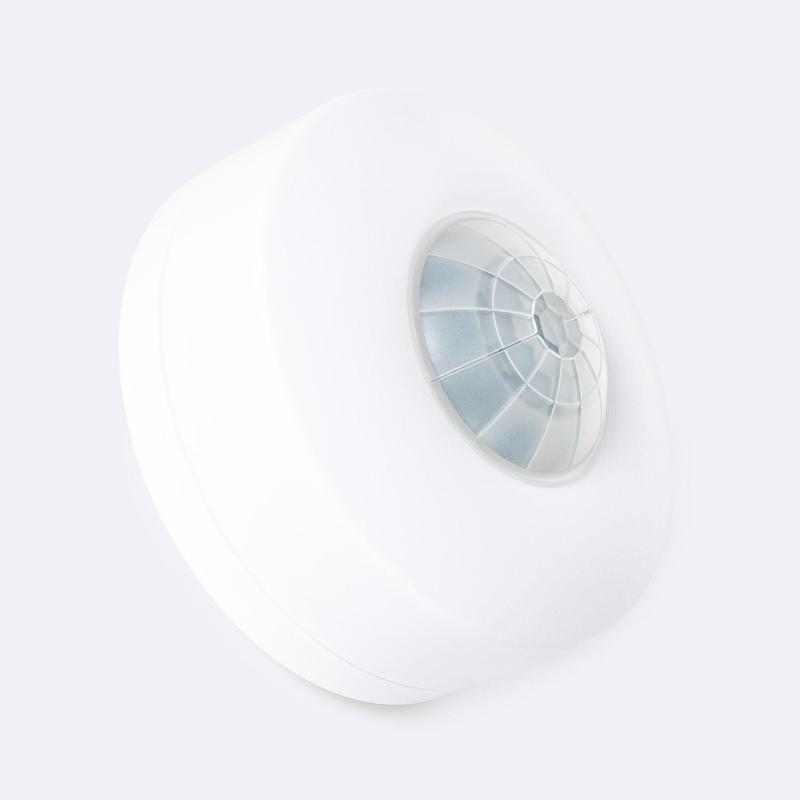

PIR Motion Sensor 360º IP54
Ref. Lyco: E37363
VAT not included £11.66
£13.99
Colour White
In Stock, Delivered in 8 to 14 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Height40 mm
- Diameter80 mm
Downloads
PDF Datasheet 100188_206728 EN
IM_100188
Certificates and Stamps
Technical Specifications
Electrical Features
- Frequency50-60 Hz
- Max Wattage300 W
- Sensitivity10 Lux~2000 Lux
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Mechanical Features
- Detection Range360 °Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
- InstallationSurface
- IP RatingIP54The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor, Indoor
- SensorPIR
- Sensor TypePIR Motion
Product Data
- Product FormatPIR Light Controller
- Product typeSensors
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Description
The IP54 360º PIR Motion Sensor is a security and energy efficient device that can be used indoors or outdoors due to its IP54 protection rating. With 360-degree angle detection and a range of up to 20 meters, this sensor is capable of detecting movement in any direction in a wide space, giving you greater protection and comfort.

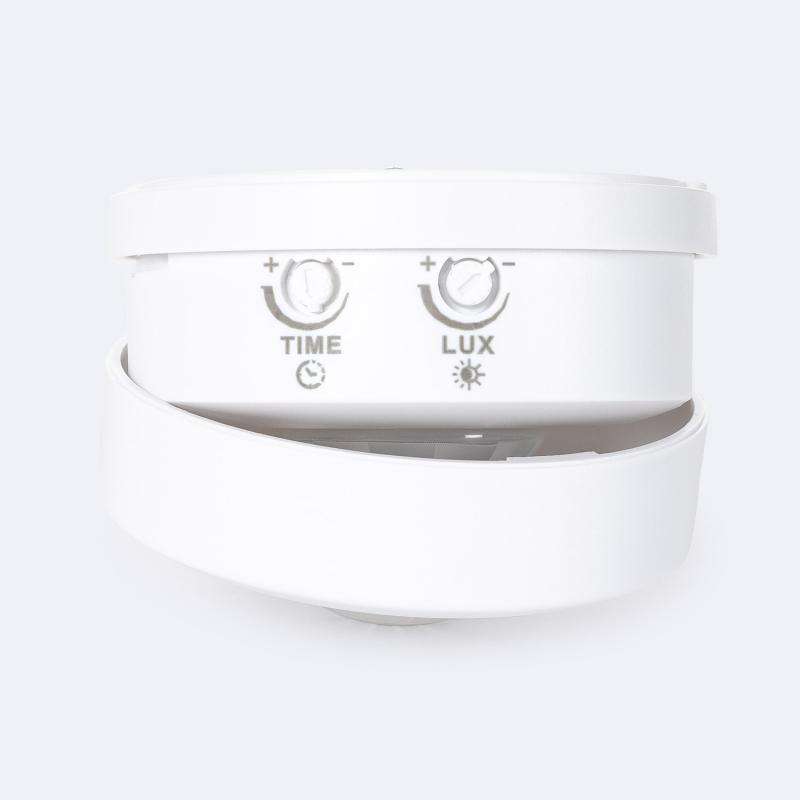

This sensor features an adjustable time delay ranging from 10 seconds to 15 minutes , allowing you to customize the duration of the light to suit your needs. In addition, it has a maximum load rating of 1200W for incandescent lamps and 300W for energy saving lamps or LEDs, making it compatible with a wide range of lighting.
The IP54 360º PIR Motion Sensor also features an adjustable ambient light range from 10 to 2000 lux , allowing it to adapt to different light levels in your environment. It is powered by a 220-240V AC 50/60Hz power supply and has an IP54 protection rating, making it waterproof and dustproof, allowing it to be used outdoors or in damp areas.
