Voltage Range 220-240V AC
Max Wattage 1000 W
Diameter 108 mm
IP Rating IP20
Voltage Range
220-240V AC
Max Wattage
1000 W
Diameter
108 mm
IP Rating
IP20
Dimensions
35 mm x Ø108 mm
Height
35 mm
Fitting Material
PC
Brand
Lyco

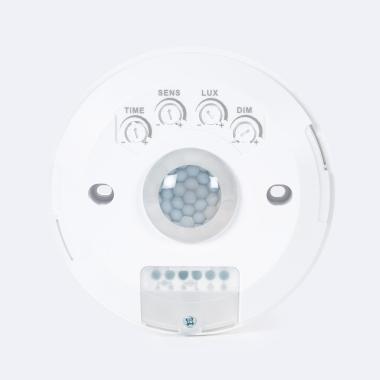

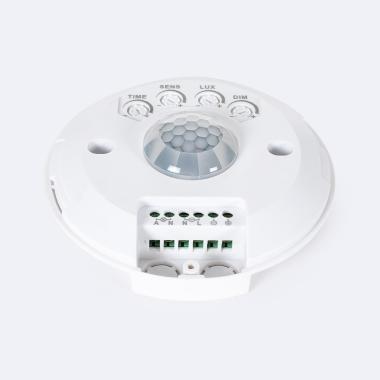

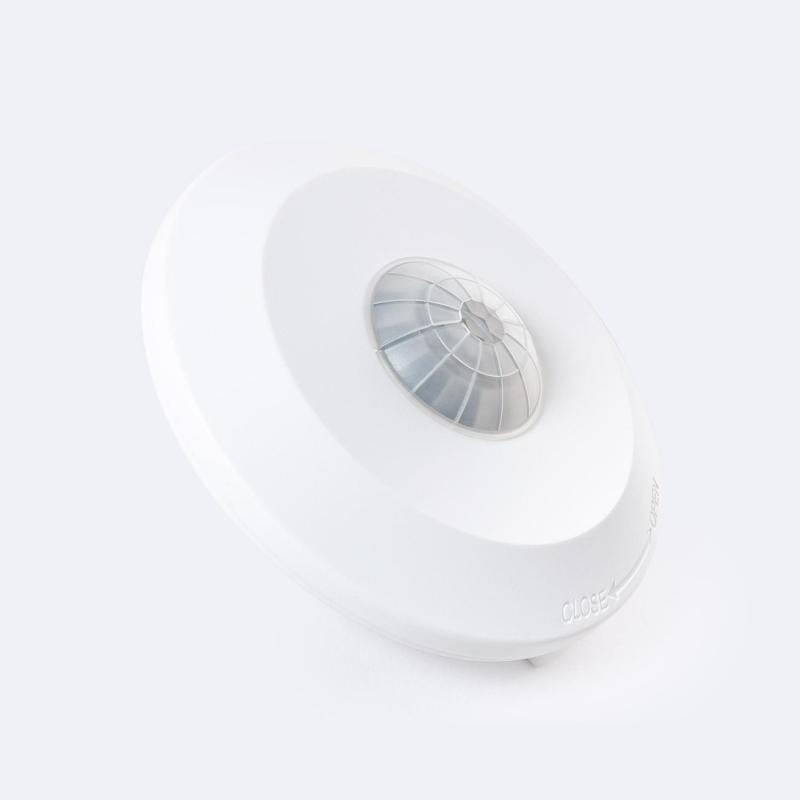

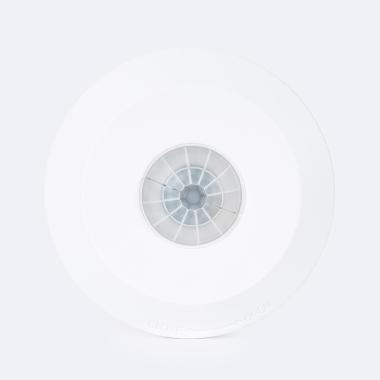

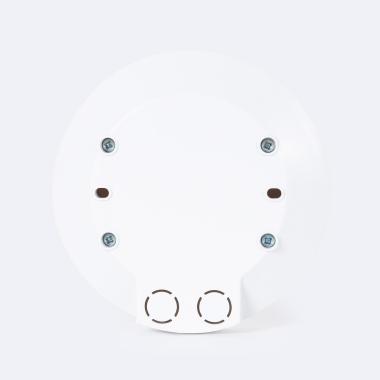

PIR Motion Sensor 360º Dimmer 0-10V
Ref. Lyco: E37362
VAT not included £16.66
£19.99
Colour White
In Stock, Delivered in 8 to 14 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.

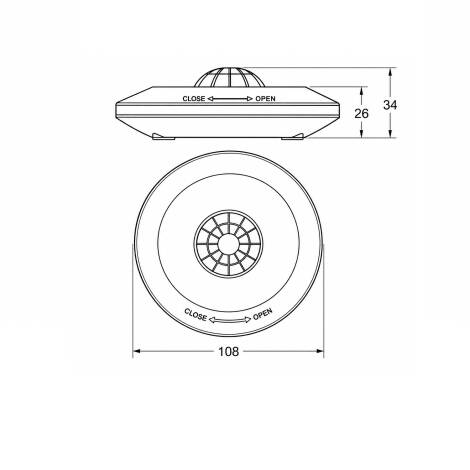

Dimensions
- Diameter108 mm
- Height35 mm
Downloads
PDF Datasheet 100187_206723 EN
Certificates and Stamps
Technical Specifications
Electrical Features
- Frequency50-60 Hz
- Max Wattage1000 W
- Sensitivity10 Lux~2000 Lux
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Mechanical Features
- Detection Range360 °Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
- InstallationSurface
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- SensorPIR
- Sensor TypePIR Motion
Product Data
- Product FormatPIR Light Controller
- Product typeSensors
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Description
The 360º PIR Motion Sensor with 0-10V dimmer is a high quality device that has a wide range of advanced features to improve security and energy efficiency in your home or workplace.
With 360-degree angle detection and a range of up to 20 meters , this sensor is capable of detecting movement in any direction in a wide space, giving you greater protection and comfort. In addition, it has a 0-10V dimming function that allows you to adjust the intensity of the light according to your needs and preferences.
The 360º PIR Motion Sensor with 0-10V Dimmer has an adjustable time delay ranging from 10 seconds to 15 minutes, allowing you to customize the duration of the light to suit your needs. It also has a maximum load rating of 2000W for incandescent lamps and 1000W for energy saving lamps or LEDs , making it compatible with a wide range of lighting.
This sensor features an adjustable ambient light range from 10 to 2000 lux , allowing it to adapt to different light levels in your environment. In addition, it is powered by a 220-240V/AC 50/60Hz power supply and has an IP20 protection rating, making it safe for indoor use.
