Voltage Range 220-240V AC
Max Wattage 1000 W
Cut Out Dimensions Ø57 mm
Diameter 78 mm
Voltage Range
220-240V AC
Max Wattage
1000 W
Cut Out Dimensions
Ø57 mm
Diameter
78 mm
IP Rating
IP20
Dimensions
67 mm x Ø78 mm
Height
67 mm
Fitting Material
PC
Brand
Lyco

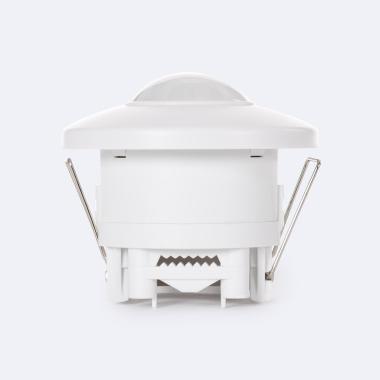

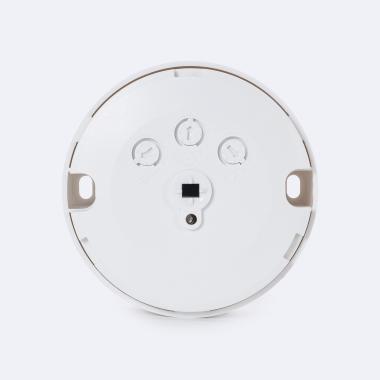

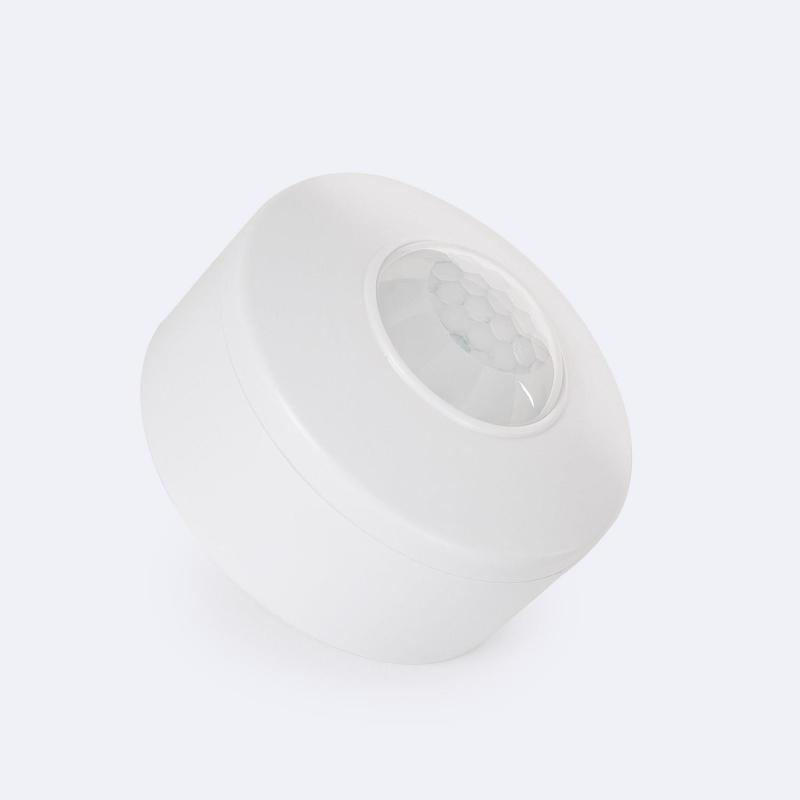

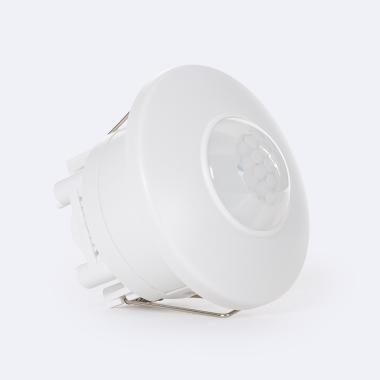

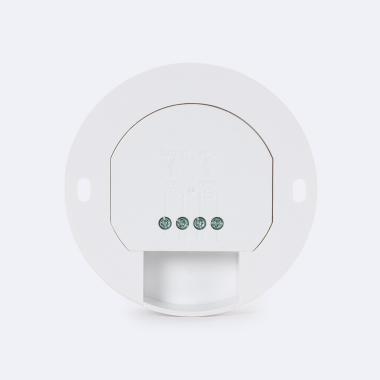

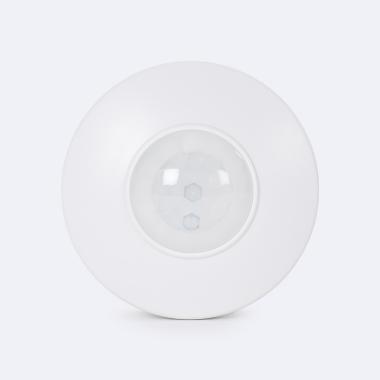

PIR Motion Sensor 360º Downlight/Surface Design
Ref. Lyco: E37356
VAT not included £10.83
£13.00
Colour White
In Stock, Delivered in 8 to 14 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.

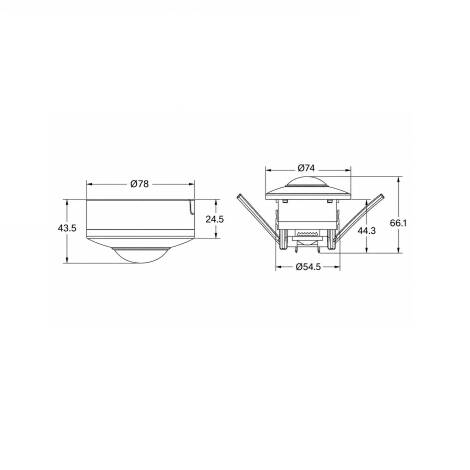

Dimensions
- Height67 mm
- Diameter78 mm
- Cut Out DimensionsØ57 mm
Downloads
PDF Datasheet 100167_206708 EN
IM_100167
Certificates and Stamps
Technical Specifications
Electrical Features
- Frequency50-60 Hz
- Max Wattage1000 W
- Sensitivity10 Lux~2000 Lux
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Mechanical Features
- Detection Range360 °Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
- InstallationRecessed, Surface
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- SensorPIR
- Sensor TypePIR Motion
Product Data
- Product FormatPIR Light Controller
- Product typeSensors
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Description
The 360º PIR Motion Sensor is a high-tech device designed to improve security and energy efficiency in your home or workplace. With its 2-in-1 design, this sensor can be used as a downlight or surface light, making it extremely versatile.
With a 360º detection range, this sensor is capable of detecting movement in any direction in a wide area of up to 16 meters , giving you greater protection in your home or workplace. Additionally, it has an adjustable time delay ranging from 10 seconds to 7 minutes , allowing you to customize the duration of the light to suit your needs.
The 360º PIR Motion Sensor has a maximum load rating of 2000W for incandescent lamps and 1000W for energy saving or LED lamps, making it compatible with a wide range of lighting. It also features an adjustable ambient light range from 10 to 2000 lux , allowing you to adjust to different light levels in your environment.
This sensor is powered by a 220-240V AC 50/60Hz power supply and has an IP20 protection rating, making it safe for indoor use. With its surface-mount or flush-mount design, this sensor is easy to install and can accommodate a variety of mounting requirements.
In short, the 360º PIR Motion Sensor is a highly advanced device that offers a wide range of energy efficient and security features, making it an excellent choice for any home or workplace.
