Voltage Range 220-240V AC
Max Wattage 1000 W
Cut Out Dimensions Ø73 mm
Diameter 93 mm
Voltage Range
220-240V AC
Max Wattage
1000 W
Cut Out Dimensions
Ø73 mm
Diameter
93 mm
IP Rating
IP20
Dimensions
36 mm x Ø93 mm
Height
36 mm
Fitting Material
PC
Brand
Lyco

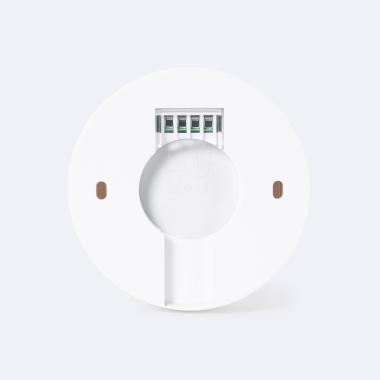

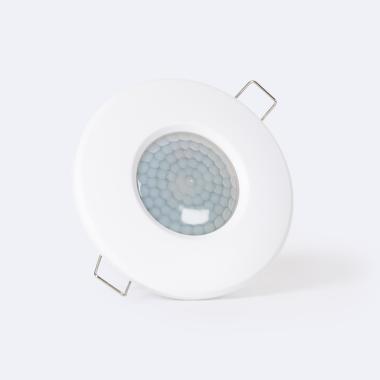

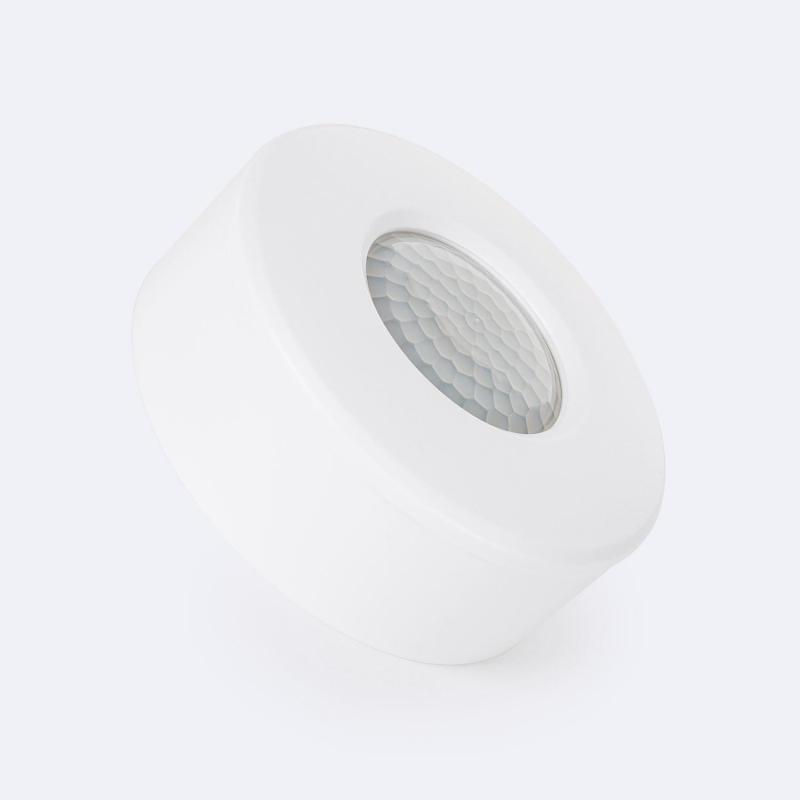

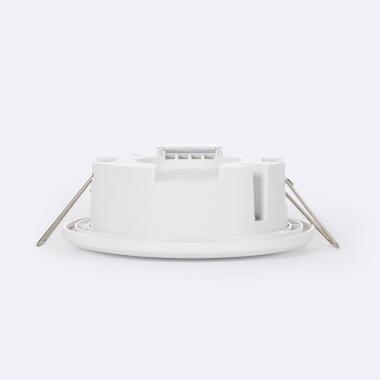

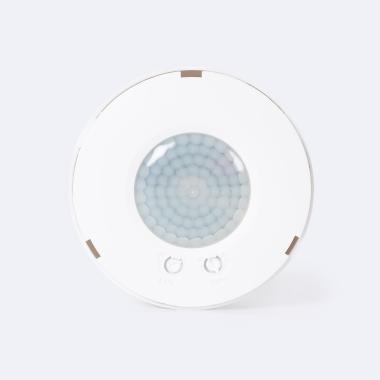

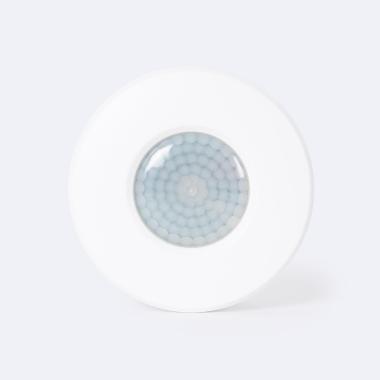

PIR Motion Sensor 360º Downlight/Surface High Power
Ref. Lyco: E37355
VAT not included £10.83
£13.00
Colour White
In Stock, Delivered in 8 to 14 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.

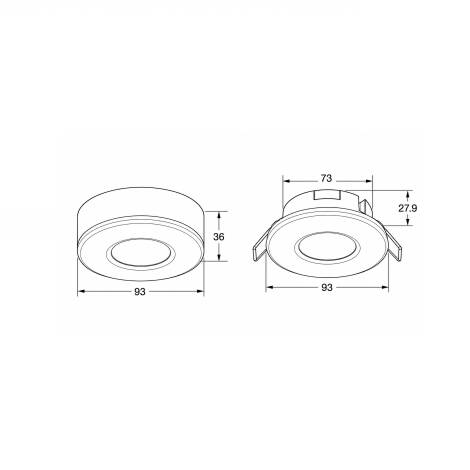

Dimensions
- Height36 mm
- Diameter93 mm
- Cut Out DimensionsØ73 mm
Downloads
PDF Datasheet 100163_206703 EN
IM_100163
Certificates and Stamps
Technical Specifications
Electrical Features
- Frequency50-60 Hz
- Max Wattage1000 W
- Sensitivity10 Lux~2000 Lux
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Mechanical Features
- Detection Range360 °Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
- InstallationSurface
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- SensorPIR
- Sensor TypePIR Motion
Product Data
- Product FormatPIR Light Controller
- Product typeSensors
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Description
The 360º PIR Motion Sensor Recessed/Surface Mounted is a 2-in-1 recessed and surface mounted fixture that is ideal for indoor lighting . With a 360º detection range and a maximum detection distance of 8 meters (<24℃), it can detect movements in all directions.
The delay time is adjustable from 10 seconds ±3 seconds to 7 minutes ±2 minutes , making it suitable for various applications. It has a power supply of 220-240V/AC 50/60Hz and a maximum load of 2000W (incandescent lamp) or 1000W (energy saving lamp/LED lamp).
In addition, the ambient light is also adjustable in the range of 10-2000LUX. With an IP20 protection level, this sensor is suitable for indoor use in areas such as hallways, stairways, garages, and bathrooms.
