PIR Motion Sensor 360º Downlight/Surface
Ref. Lyco: E37354
Colour White
VAT not included £12.99
£15.59
IN STOCK - Delivered in 1 to 2 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.

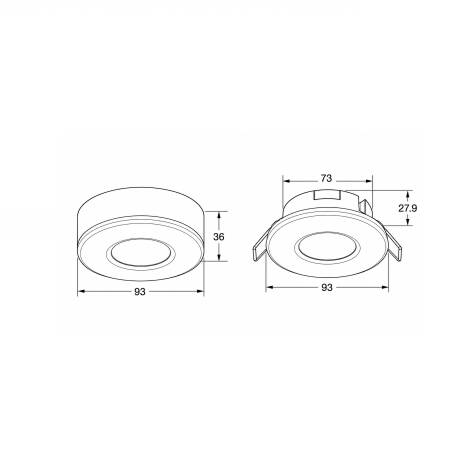

Dimensions
- Height36 mm
- Diameter93 mm
- Cut Out DimensionsØ73 mm
Downloads
PDF Datasheet 100150_206690 EN
IM_100150
Certificates and Stamps
Technical Specifications
Electrical Features
- Electrical Insulation ClassII
- Frequency50-60 Hz
- Max Wattage400 W
- Sensitivity10 Lux~2000 Lux
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Mechanical Features
- Detection Range360 °Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
- InstallationRecessed, Surface
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- SensorPIR
- Sensor TypePIR Motion
Product Data
- Product FormatPIR Light Controller
- Product typeSensors
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Description

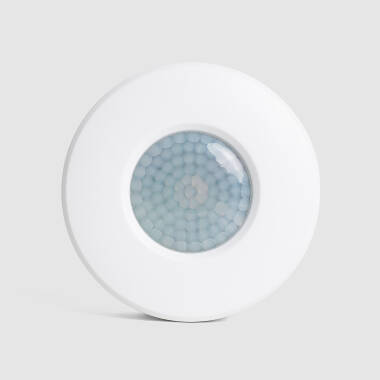

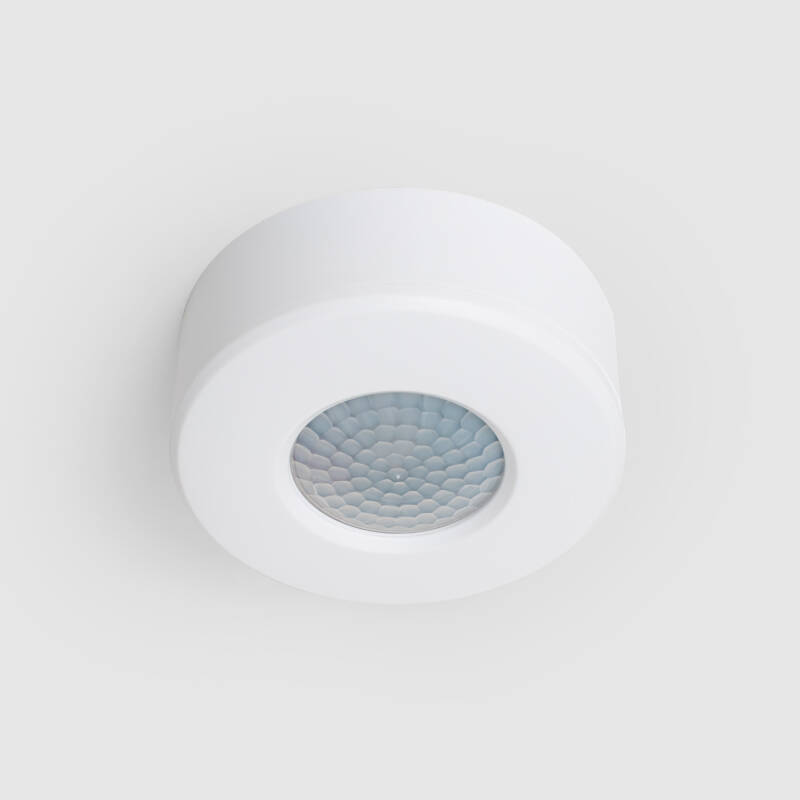

This PIR motion sensor has a versatile design that can be surface or recess mounted. It has a wide detection range of 360º , which allows it to cover a large area.
The sensor can detect motion at a maximum distance of 8 meters in ambient temperature conditions below 24℃. The delay time can be adjusted from 10 seconds to 7 minutes to customize how long the light stays on after motion is detected.
This motion sensor is powered by a 220-240V/AC 50/60Hz power supply and has a maximum load rating of 800W for incandescent lamps, or 400W for LED/energy saving lamps. It also has an ambient light setting, allowing you to customize the sensitivity of the sensor to the light in your environment.
The recommended installation height for this motion sensor is 2.5 to 4 meters on the wall, or 2 to 4 meters on the ceiling. It has an IP20 rating, which means it is protected against solid objects larger than 12.5mm , but it is not protected against the ingress of liquids. Therefore, it is recommended for indoor use.
This motion sensor is ideal for use in commercial and residential areas where automatic lighting is required. Its versatile design allows for easy installation in downlights or surfaces, making it ideal for renovations and new construction projects.
