Voltage Range 220-240V AC
Max Wattage 200 W
IP Rating IP20
Dimensions 49 mm x 85.5 mm x 85.5 mm
Voltage Range
220-240V AC
Max Wattage
200 W
IP Rating
IP20
Dimensions
49 mm x 85.5 mm x 85.5 mm
Width
85.5 mm
Height
49 mm
Fitting Material
PC
Brand
Lyco

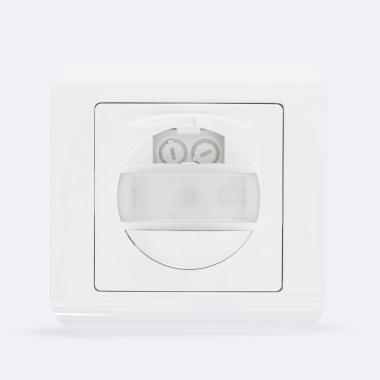

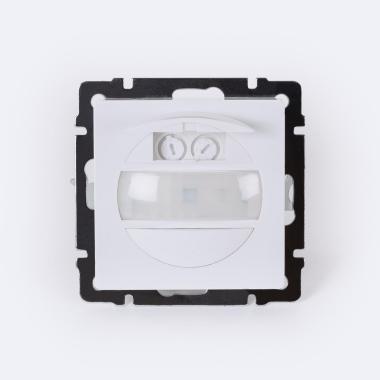

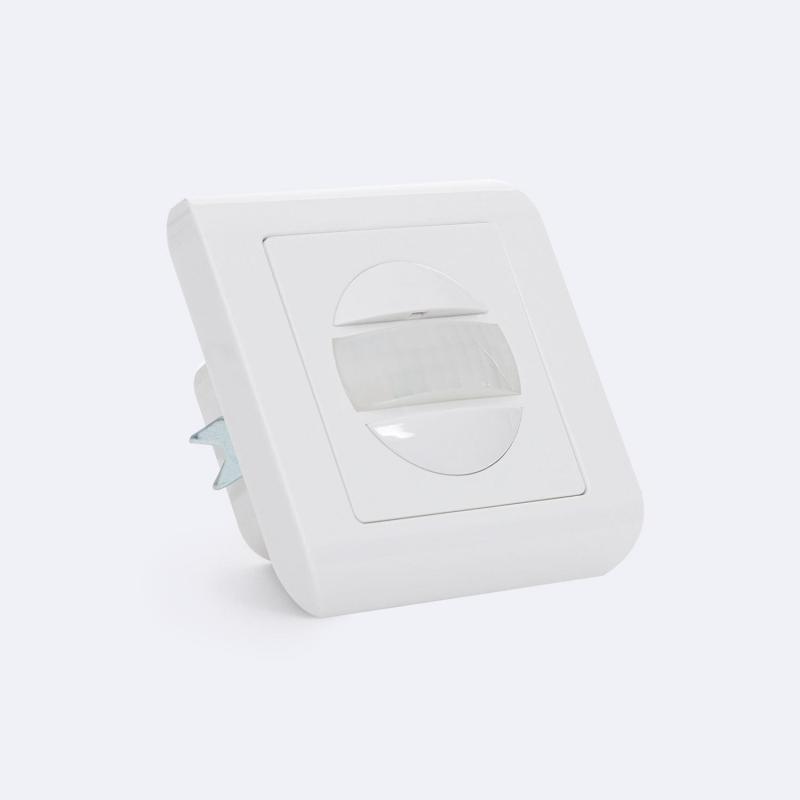

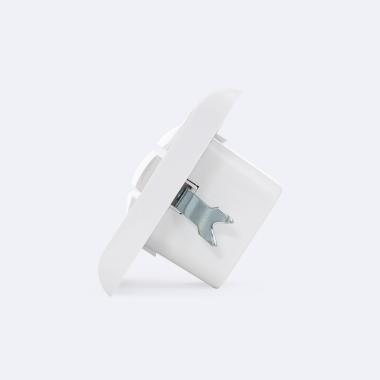

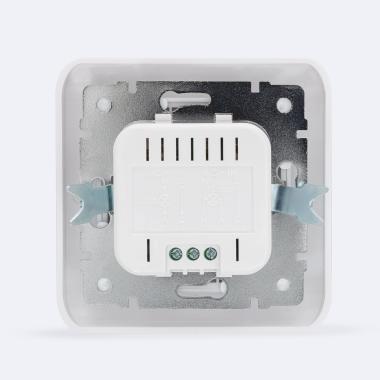

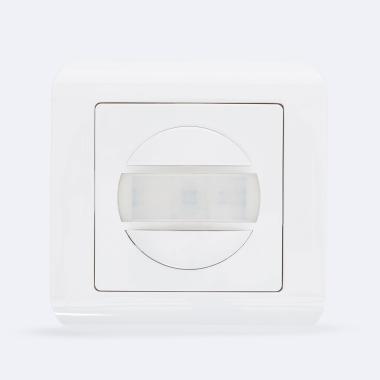

PIR Motion Sensor 120º Wall Recessed Square Pro
Ref. Lyco: E37353
VAT not included £11.66
£13.99
Colour White
In Stock, Delivered in 8 to 14 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.

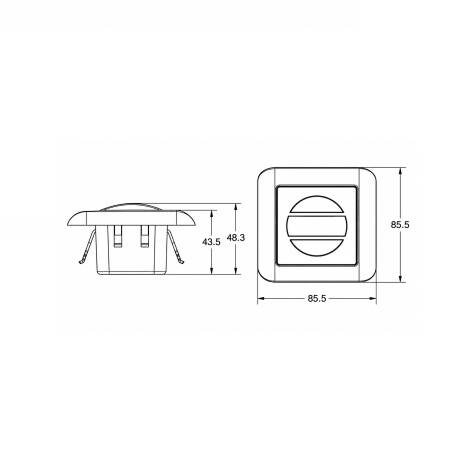

Dimensions
- Height49 mm
- Depth85.5 mm
- Width85.5 mm
Downloads
PDF Datasheet 100147_206683 EN
IM_100147
Certificates and Stamps
Technical Specifications
Electrical Features
- Frequency50-60 Hz
- Max Wattage200 W
- Sensitivity10 Lux~2000 Lux
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Mechanical Features
- Detection Range120 °Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
- InstallationRecessed
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- SensorPIR
- Sensor TypePIR Motion
Product Data
- Product FormatPIR Light Controller
- Product typeSensors
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Description
This PIR motion sensor has a square design and is designed for wall mounting . It has a wide detection range of 120º , which allows it to cover a large area.
The sensor can detect motion at a maximum distance of 10 meters in ambient temperature conditions below 24℃. The delay time can be adjusted from 10 seconds to 7 minutes to customize how long the light stays on after motion is detected.
This motion sensor is powered by a 220-240V AC 50-60Hz power supply and has a maximum load rating of 500W for incandescent lamps, or 200W for LED/energy saving lamps. It also has an ambient light setting, allowing you to customize the sensitivity of the sensor to the light in your environment.
The recommended installation height for this motion sensor is 1 to 1.8 meters . It has an IP20 rating, which means it is protected against solid objects larger than 12.5mm , but it is not protected against the ingress of liquids. Therefore, it is recommended for indoor use. This motion sensor is ideal for commercial and residential use.
