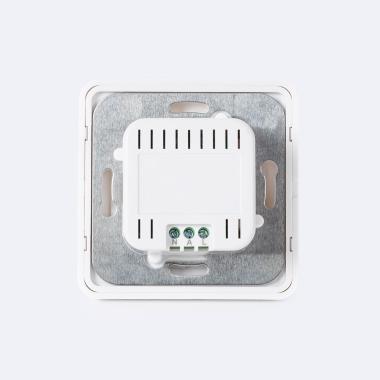

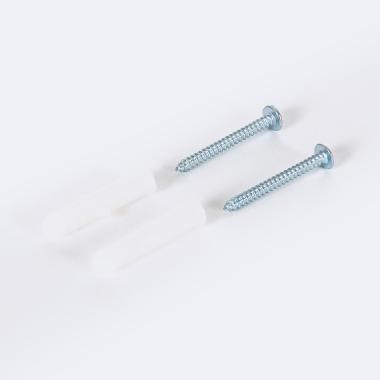

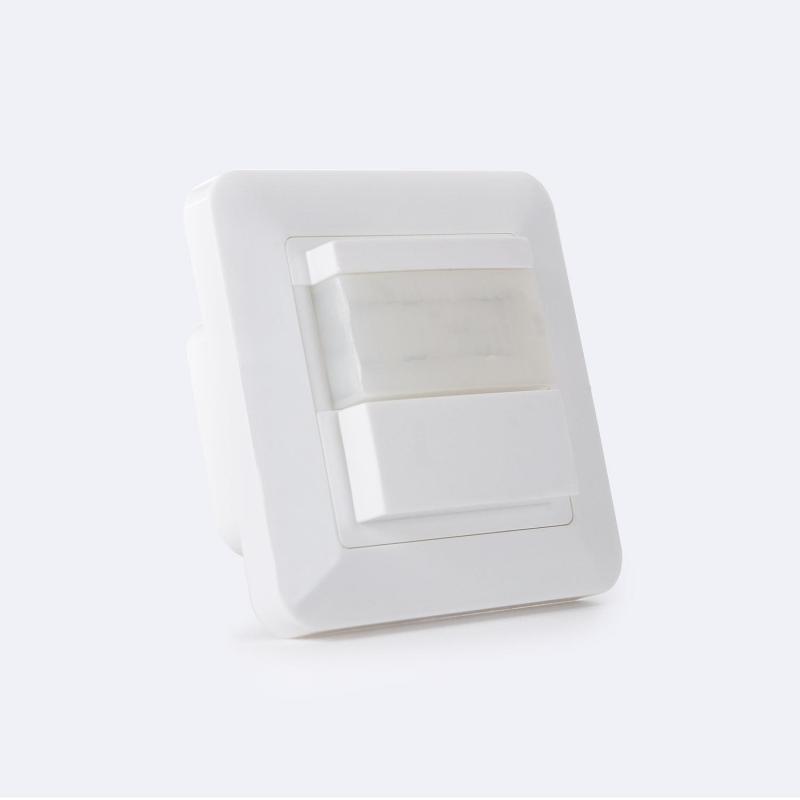

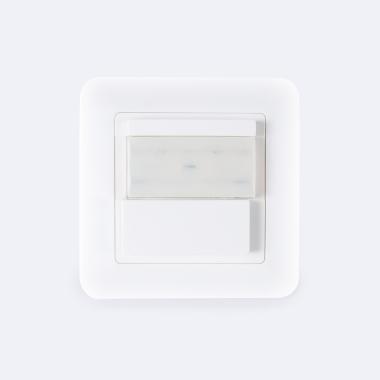

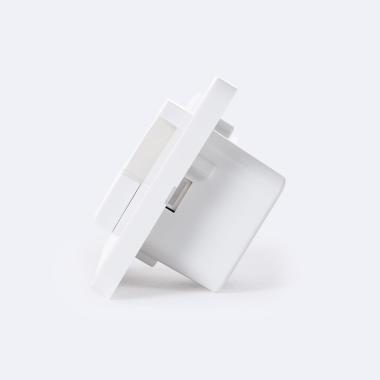

Image of PIR Motion Sensor 120º Wall Recessed Square
Image of PIR Motion Sensor 120º Wall Recessed Square
Image of PIR Motion Sensor 120º Wall Recessed Square
Image of PIR Motion Sensor 120º Wall Recessed Square
Image of PIR Motion Sensor 120º Wall Recessed Square
Image of PIR Motion Sensor 120º Wall Recessed Square

PIR Motion Sensor 120º Wall Recessed Square

Download technical datasheet

Ref. Lyco: E37351

Colour White

    VAT not included £8.33

    £10.00

    IN STOCK - Delivered in 8 to 14 working days

      30 Day Credit Terms

      • 30 Day Return

        Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.


        For more information view our Returns policy.

      • Want your items fast?

        Check our delivery cut-off times below:


        Mon – Thu: Order before 8:45 PM for 24/48h delivery.


        Friday: Order before 3:00 PM for 24/48h delivery.


        Full conditions here: Delivery methods.

      • 100% secure payments

        payment method image 1

        payment method image 2

        At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation

      • Up to 5 year warranty

        Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


        You will find the exact product warranty in the technical details.

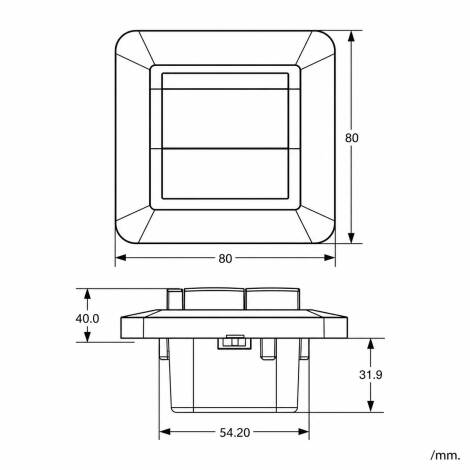

    Dimensions

    • Depth49 mm
    • Height80 mm
    • Width80 mm
    Scheme image

    Downloads

    • pdf file

      PDF Datasheet 100137_206672 EN

    • pdf file

      IM_100137

    Certificates and Stamps

    CertificateCertificateCertificate

    Technical Specifications

    • Electrical Features

      • Frequency50-60 Hz
      • Max Wattage200 W
      • Sensitivity10 Lux~2000 Lux
      • Voltage level required for the product to function correctly.
        Voltage Range220-240V AC

    • Mechanical Features

      • Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
        Detection Range120 °
      • InstallationSurface
      • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
        IP RatingIP20
      • LocationIndoor
      • SensorPIR
      • Sensor TypePIR Motion

    • Product Data

      • Product FormatPIR Light Controller
      • Product typeSensors

    • Product Information

      • BrandLyco
      • CertificatesCE, RoHS, UKCA
      • Guarantee3 years

    • Materials and Finishes

      • ColourWhite
      • Fitting MaterialPC
    Outdoor Lights

    Description

    This PIR motion sensor has a square design and can be installed on the wall. The detection range of the sensor is 120º , giving you wide detection coverage in a specific area.

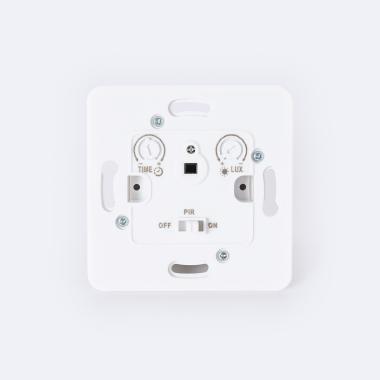

    The maximum sensing distance is 10 meters under ambient temperature conditions below 24℃ . The delay time is adjustable from 10 seconds to 7 minutes , allowing you to customize how long the light stays on after motion is detected.

    This motion sensor is powered by a 220-240V/AC 50/60Hz power supply and has a maximum load rating of 500W for incandescent lamps, or 200W for LED/energy saving lamps. It also features an ambient light setting, which allows you to customize the sensitivity of the sensor to the light in your environment.

    The recommended installation height for this motion sensor is 1-1.8 meters. This motion sensor has an IP20 rating, which means it is protected against solid objects larger than 12.5mm, but it is not protected against liquid ingress. Therefore, it is recommended for indoor use.
