Voltage Range 220-240V AC
Max Wattage 1000 W
IP Rating IP54
Dimensions 137 mm x 77 mm x 83 mm
Voltage Range
220-240V AC
Max Wattage
1000 W
IP Rating
IP54
Dimensions
137 mm x 77 mm x 83 mm
Width
77 mm
Height
137 mm
Fitting Material
PC
Brand
Lyco

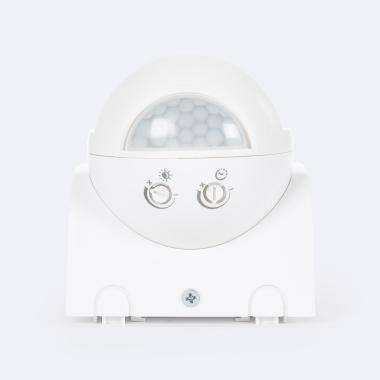

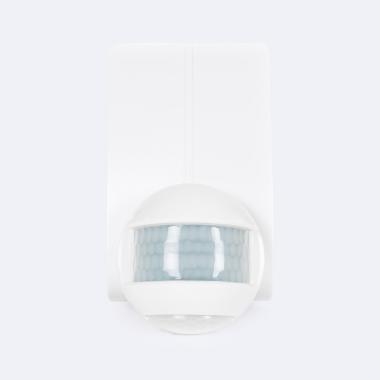

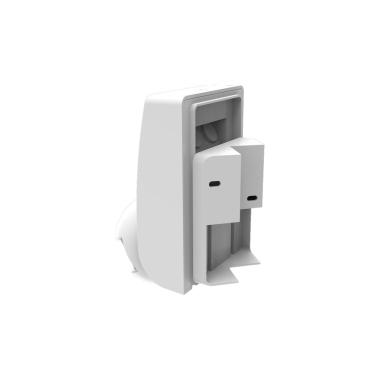

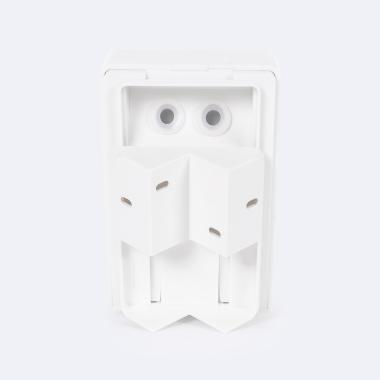

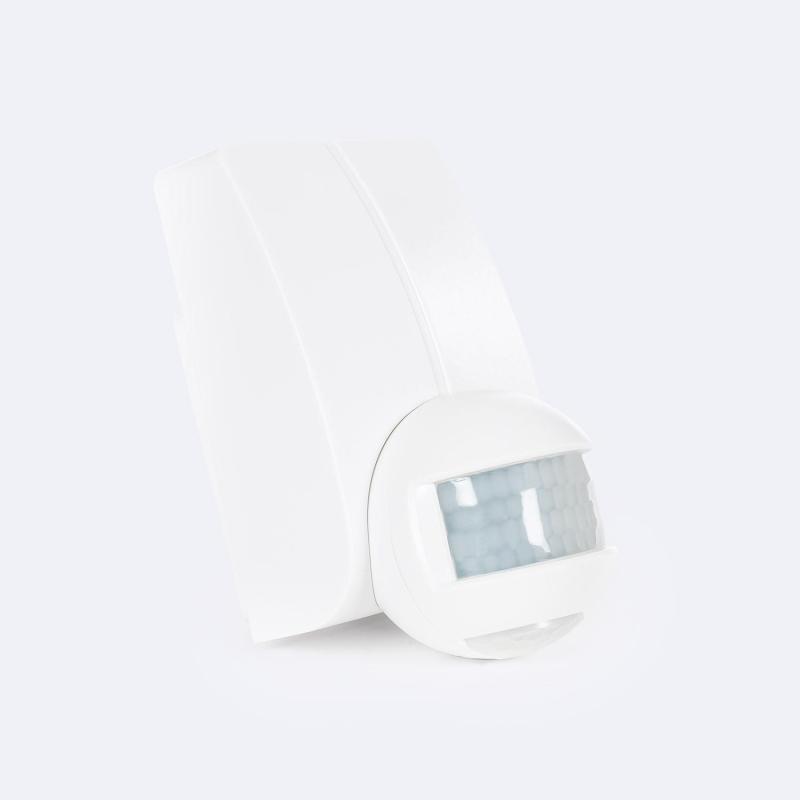

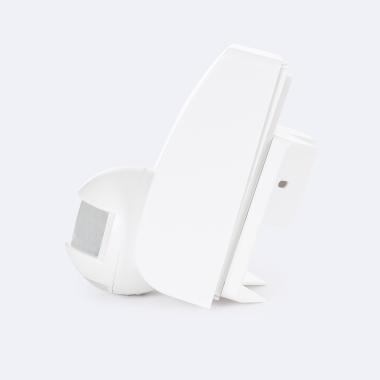

PIR Motion Sensor 360º Wall and Corner IP54 White
Ref. Lyco: E37349
VAT not included £15.83
£19.00
Colour White
In Stock, Delivered in 8 to 14 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.

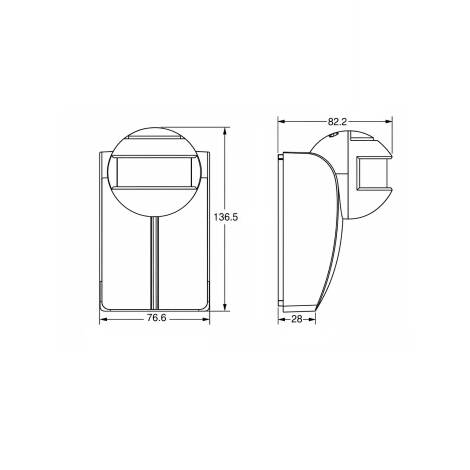

Dimensions
- Height137 mm
- Width77 mm
- Depth83 mm
Downloads
PDF Datasheet 100132_206665 EN
IM_100132
Certificates and Stamps
Technical Specifications
Electrical Features
- Frequency50-60 Hz
- Max Wattage1000 W
- Sensitivity10 Lux~2000 Lux
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Mechanical Features
- Detection Range360 °Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
- InstallationSurface
- IP RatingIP54The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor, Indoor
- SensorPIR
- Sensor TypePIR Motion
Product Data
- Product FormatPIR Light Controller
- Product typeSensors
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Description
The White IP54 360º Wall and Corner PIR Motion Sensor is suitable for wall and corner mounting, allowing versatile installation in different areas of your home or business. The detection range of the sensor is 180º on the wall and 360º in the corner, giving you wide detection coverage to detect movement in any direction.
The maximum sensing distance is 12 meters under ambient temperature conditions below 24℃. The delay time can be adjusted from 10 seconds to 15 minutes , allowing you to customize how long the light stays on after motion is detected.
This motion sensor is powered by a 220-240V AC 50/60Hz power supply and has a maximum load rating of 2000W for incandescent lamps, or 1000W for LED/energy saving lamps. It also features an ambient light setting, which allows you to customize the sensitivity of the sensor to the light in your environment.
This motion sensor is IP54 rated, which means it is protected against dust and rain, making it suitable for use both indoors and outdoors. With its white design, it integrates perfectly with the decoration of your home or business.
