Max Wattage 400 W
IP Rating IP54
Dimensions 111 mm x 70 mm x 95 mm
Width 70 mm
Max Wattage
400 W
IP Rating
IP54
Dimensions
111 mm x 70 mm x 95 mm
Width
70 mm
Height
111 mm
Fitting Material
PC
Brand
Lyco
PIR Motion Sensor 360º Addressable Photocell IP54
Ref. Lyco: E37348
Ref. Stock: 206660
VAT not included £11.66
£13.99
Colour White
IN STOCK - Delivered in 1 to 2 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Height111 mm
- Width70 mm
- Depth95 mm
Downloads
PDF Datasheet 100128_206660 EN
Certificates and Stamps
Technical Specifications
Electrical Features
- Frequency50-60 Hz
- Max Wattage400 W
- Nominal Voltage220 V - 240 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Sensitivity10 Lux~2000 Lux
Mechanical Features
- Detection Range180 °Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
- InstallationSurface
- IP RatingIP54The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- SensorPIR
- Sensor TypePIR Motion
Product Data
- Product FormatPIR Light Controller
- Product typeSensors
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Description

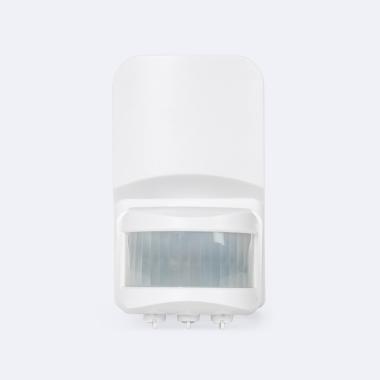

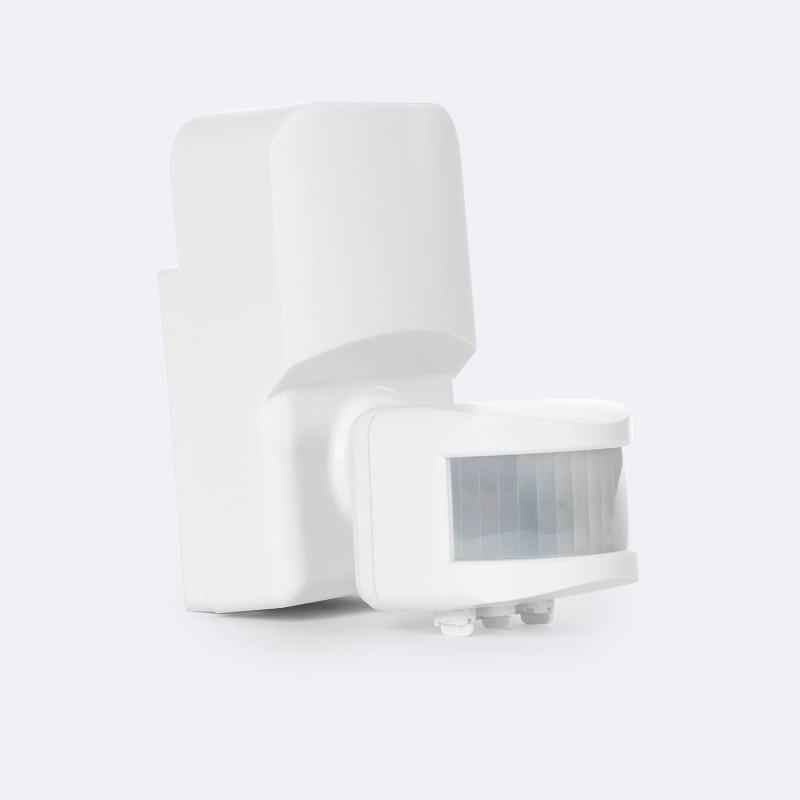

360º Movement Sensor Surface IP54
It has an infrared sensor with a detection angle of 360 ° and a range of up to 20 m , with which you will be able to capture any movement that is in its range.
It also has photocells, they are basically sensors that respond to changes in the intensity of the ambient light. They work by detecting light levels and reacting according to their programming, model, and functionality.
Its installation is on the surface and it is recommended to install it at a height between 4-10 m.
Minimum Power On Time : 10 seconds ±3 seconds.
Maximum ignition time: 10 minutes ±2 minutes.
This sensor is capable of supporting an LED load of up to 400 W , and in case it is incandescent 800 W.
This sensor is ideal for outdoors, since it has IP54 protection.
