Voltage Range 220-240V AC
Max Wattage 300 W
IP Rating IP54
Dimensions 60 mm x 105 mm x 105 mm
Voltage Range
220-240V AC
Max Wattage
300 W
IP Rating
IP54
Dimensions
60 mm x 105 mm x 105 mm
Width
105 mm
Height
60 mm
Fitting Material
PC
Brand
Lyco
PIR Motion Sensor 360º Long Range 20m IP54
Ref. Lyco: E37346
VAT not included £19.99
£23.99
Colour White
In Stock, Delivered in 8 to 14 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.

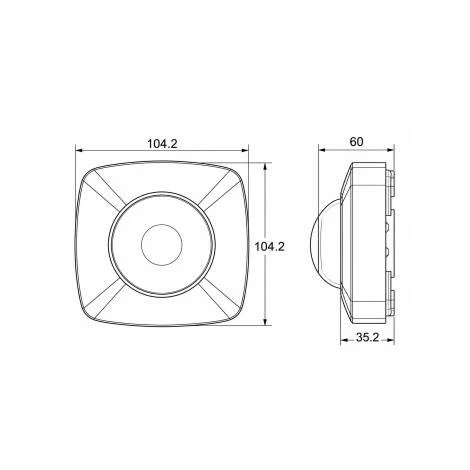

Dimensions
- Depth105 mm
- Width105 mm
- Height60 mm
Downloads
PDF Datasheet 100123_206652 EN
IM_100123
Certificates and Stamps
Technical Specifications
Electrical Features
- Frequency50-60 Hz
- Max Wattage300 W
- Sensitivity10 Lux~2000 Lux
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Mechanical Features
- Detection Range360 °Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
- InstallationSurface
- IP RatingIP54The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor, Indoor
- SensorPIR
- Sensor TypePIR Motion
Product Data
- Product FormatPIR Light Controller
- Product typeSensors
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Description

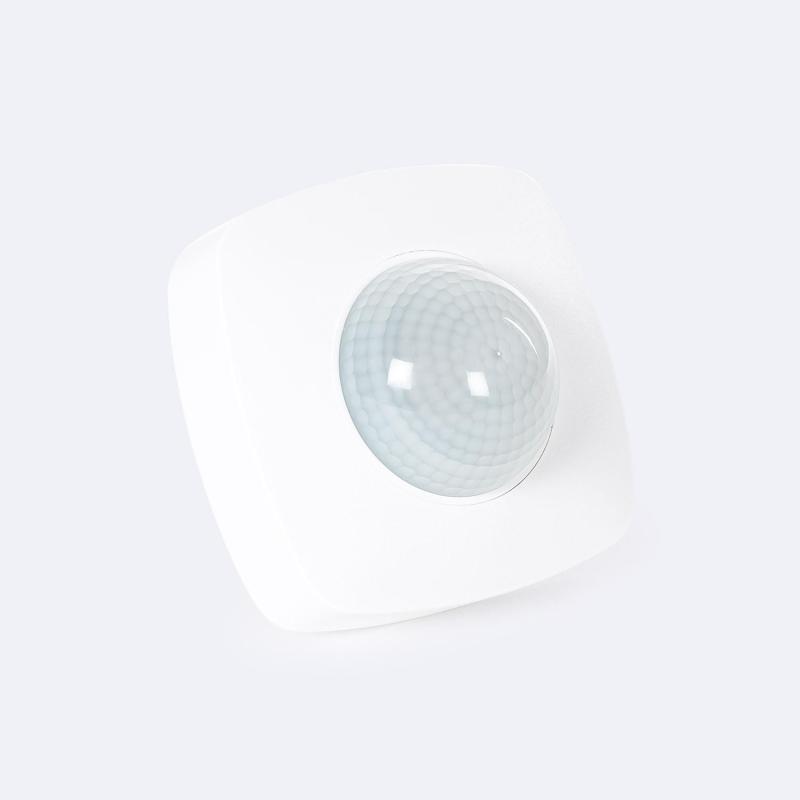

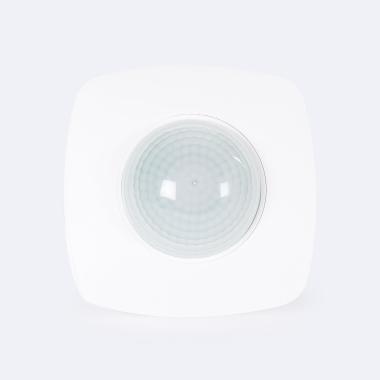

Motion Sensor 360º Surface Long Range IP54
It has an infrared sensor with a detection angle of 360 ° and a range of up to 20 m , with which you will be able to capture any movement that is in its range.
Its installation is on the surface and it is recommended to install it at a height between 4-10 m.
Minimum Power On Time : 10 seconds ±3 seconds.
Maximum ignition time: 10 minutes ±2 minutes.
This sensor is capable of supporting an LED load of up to 300 W , and in case it is incandescent 1200 W.
This sensor is ideal for outdoors, since it has IP54 protection.
