Voltage Range 220-240V AC
Max Wattage 600 W
Type Of Dimming 1-10 V, Remote Control
IP Rating IP20
Voltage Range
220-240V AC
Max Wattage
600 W
Type Of Dimming
1-10 V, Remote Control
IP Rating
IP20
Dimensions
87 mm x 87 mm x 54 mm
Width
87 mm
Height
87 mm
Fitting Material
PCB
Brand
Lyco
Dimmable
Yes
Current Intensity
10 A

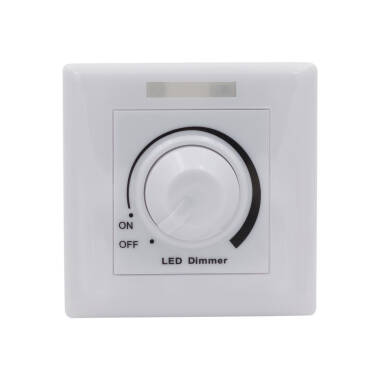

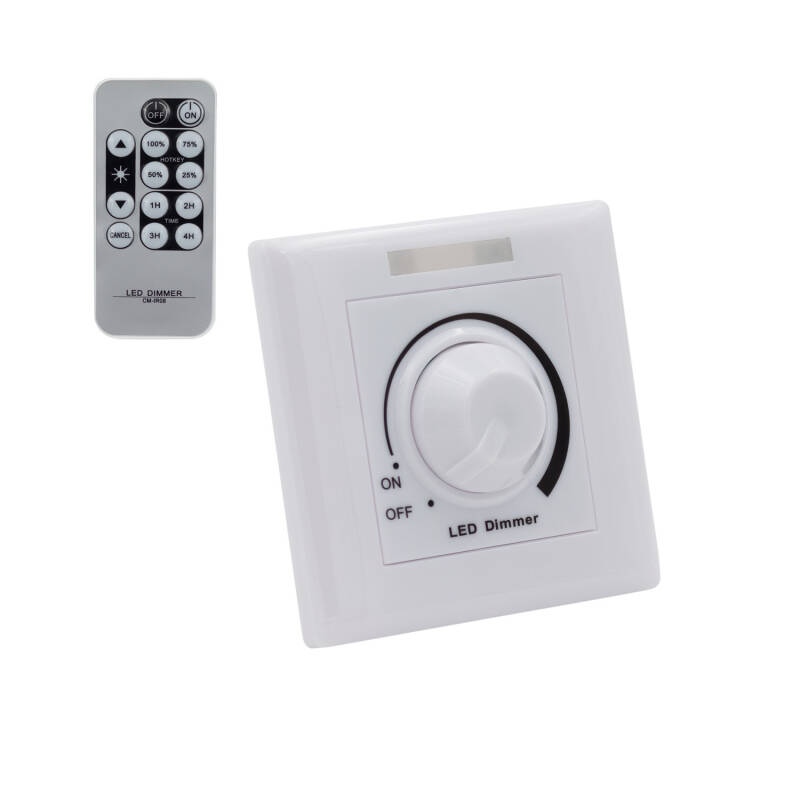

1-10V LED Dimmer with IR Remote Control
Ref. Lyco: E1614
VAT not included £29.16
£34.99
In Stock, Delivered in 8 to 14 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Depth54 mm
- Height87 mm
- Width87 mm
Downloads
PDF Datasheet 1001 EN
Certificates and Stamps
Technical Specifications
Electrical Features
- Current Intensity10 A
- DimmableYes
- Frequency50-60 Hz
- Max Wattage600 W
- Nominal Voltage90 V - 264 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Type Of Dimming1-10 V, Remote Control
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Mechanical Features
- InstallationRecessed
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
- Product SeriesPhase
Product Data
- Product FormatDimmer Switch
- Product typeSwitch mechanisms
Materials and Finishes
- Fitting MaterialPCB
- IncludesIR remote control
Description
This 1/10V LED Dimmer with an IR Remote Control that works at 90-240V AC and allows us to control the brightness, from 0-100%, of all LED solutions that require dimming, like the products that can be found in the 'Accessories' section.

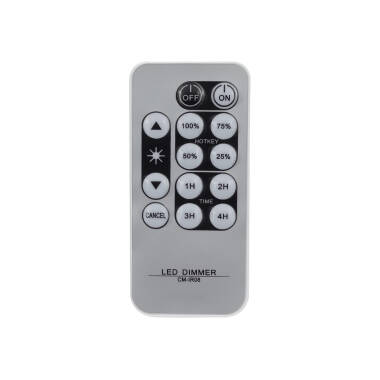

With this LED Dimmer we can create welcoming environments and at the same time, we can create a well-lit environment, all with the simple twist of the dimmer switch or with the press of a button on the included remote control with an infrared sensor (10-15 metre range). Said controller allows us to adjust the brightness of the lights at a distance, and also assign turn-off times.
*It can withstand an approximate charge of 600W.

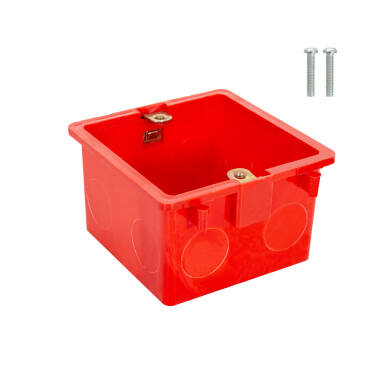

*It incorporates a built-in box for a surface installation.
